Flocked Polishing Film and Cleaning Film
Flocked Polishing Film and Cleaning Film
The abrasive grains coated on fine fibers conform to even complex shapes, enabling environmentally friendly slurry-free polishing.

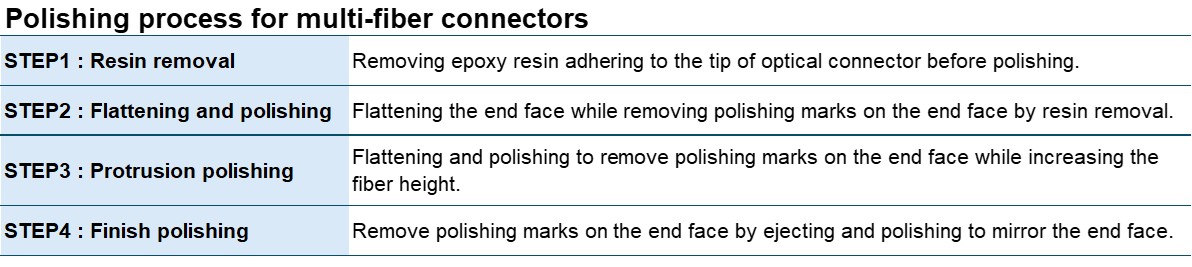

Flocked film is a film developed primarily for polishing optical fibers used for protruding, finish polishing, and cleaning of multi-core connectors.
Product Shape
Applications
Product Features
As the name suggests, fine fibers are formed on the base material and each fiber is coated with abrasive grains.
These fibers act like a brush allowing multi-core connectors with multiple fibers to be polished uniformly without using slurry by reducing the burden on the environment.
There is also lineup of films that are no abrasive coated products which can be used to clean the end faces of multi-fiber connectors or as pads for slurry polishing.
Product Line-up
Compatible shapes
Multi core fiber, 12 core
Multi core fiber, 24 core
Reference specification after finishing polishing
The above is a guideline when using Mipox's standard polishing process and Mipox can make proposals including the process according to desired parameters.
Extruded 2D profile
Ejector 3D profile
other services
CONTACT
Mipox, the polishing professional, will propose the best polishing solutions, materials, and tools to meet your needs.
Please feel free to contact us.
